Kodiak 450

Kodiak 450

Description

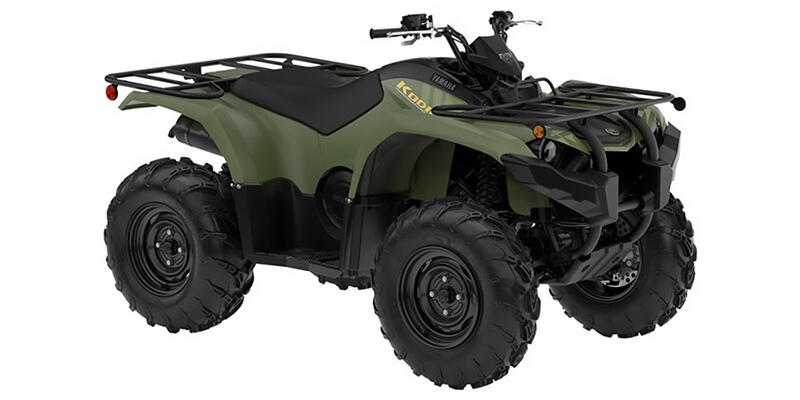

With an Ultramatic automatic transmission, On‑Command 2WD/4WD and fuel injection, this ATV packs big performance into a mid‑size machine.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      SOHC
    • Bore (in)
      3.33
    • Stroke (in)
      2.96
    • Displacement (cc)
      421
    • Carburetion Type
      Fuel Injected
    • Parental Controls
      Not Available
    • Valves Per Cylinder
      2
    • Speed Governor
      No
    • Fuel Injector Size (mm)
      34
    • Compression Ratio
      10.0:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Hi / Low Range
      Yes
    • Primary Drive (Rear Wheel)
      Shaft
    • Reverse
      Yes
    • Transmission Brand
      UltraMatic™
    • Primary Drive (Engine / Transmission)
      Belt
    • Primary Drive (Front Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Unlocking Differential
      No
    • Rear Solid Axle
      No
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      46.5
    • Height (in)
      45.7
    • Wheelbase (in)
      48.8
    • Ground Clearance (in)
      9.6
    • Fuel Capacity (gal)
      3.7
    • Engine Displacement to Weight (cc)
      0.67
    • Towing Capacity (lbs)
      1322
    • Wet Weight (lbs)
      637
    • Payload Capacity (lbs)
      264
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Travel (in)
      6.7
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Independent Double Wishbone
    • Rear Travel (in)
      7.4
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      2
    • Rear Suspension Material
      Steel
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Steel
    • Tube / Tubeless
      Tubeless
    • Front Tire Diameter (in)
      25
    • Rear Tire Diameter (in)
      25
    • Front Tire (Full Spec)
      AT25 x 8 - 12
    • Rear Tire (Full Spec)
      AT25 x 10 - 12
    • Tire Chains
      Not Available
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Sealed Oil Bath Multi-Disc
  • Color options
    add remove
    • Tactical Green
    • Steel Blue
