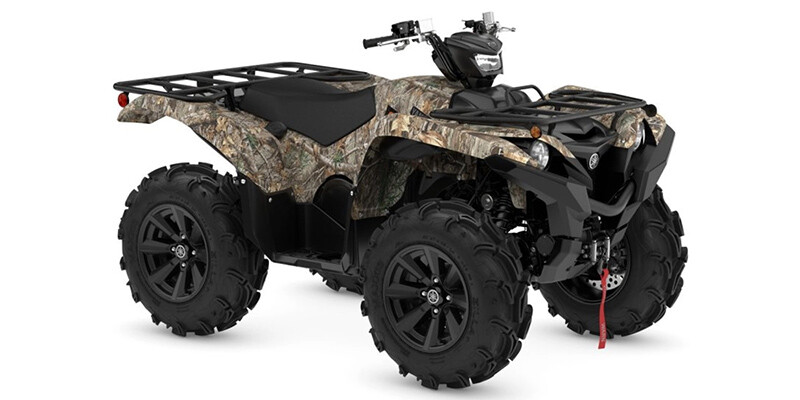

Grizzly EPS Camo

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valve Configuration
    SOHC
  • Bore (in)
    4.02
  • Stroke (in)
    3.31
  • Displacement (cc)
    686
  • Carburetion Type
    Fuel Injected
  • Parental Controls
    Not Available
  • Valves Per Cylinder
    4
  • Speed Governor
    No
  • Fuel Injector Size (mm)
    44
  • Compression Ratio
    10.0:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Rear Wheel)
    Shaft
  • Reverse
    Yes
  • Transmission Brand
    UltraMatic™
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    2
  • Rear Unlocking Differential
    No
  • Rear Solid Axle
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    49.2
  • Height (in)
    50
  • Wheelbase (in)
    49.2
  • Ground Clearance (in)
    11.8
  • Fuel Capacity (gal)
    4.8
  • Engine Displacement to Weight (cc)
    0.88
  • Towing Capacity (lbs)
    1300
  • Wet Weight (lbs)
    783
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent Double Wishbone
  • Front Travel (in)
    7.6
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Steering Damper
    No
  • Rear Suspension Type
    Independent Double Wishbone
  • Rear Travel (in)
    9.1
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    2
  • Rear Suspension Material
    Steel
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Tube / Tubeless
    Tubeless
  • Front Tire Diameter (in)
    27
  • Rear Tire Diameter (in)
    27
  • Front Tire (Full Spec)
    Maxxis® Zilla AT27 x 10 - 14 MU01
  • Rear Tire (Full Spec)
    Maxxis® Zilla AT27 x 10 - 14 MU01
  • Tire Chains
    Not Available
  • Spare Tire
    Not Available
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
• Color options

  add remove
  • Realtree Edge
