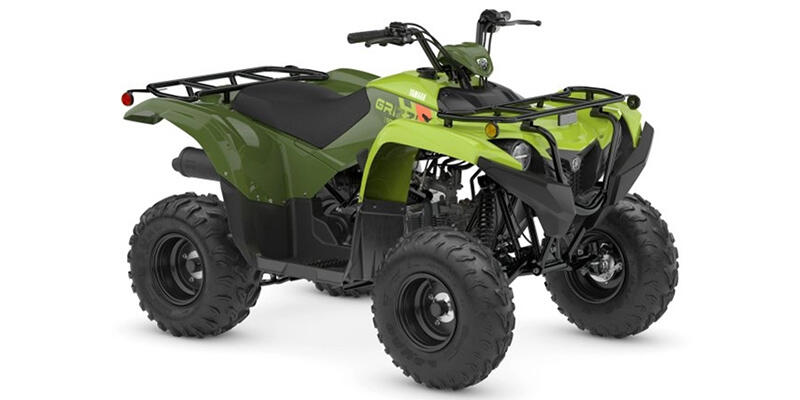

Grizzly 110

Grizzly 110

Description

Proven Off‑Road performance and Grizzly‑styling with a potent 112cc engine, advanced fuel injection and CVT transmission, the Grizzly 110 is perfect for trail riders age 10 and up.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valve Configuration
      SOHC
    • Bore (in)
      2.06
    • Stroke (in)
      2.04
    • Displacement (cc)
      112
    • Carburetion Type
      Fuel Injected
    • Parental Controls
      Standard
    • Valves Per Cylinder
      2
    • Speed Governor
      Yes
    • Fuel Injector Size (mm)
      22
    • Compression Ratio
      9.2:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Hi / Low Range
      No
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      Yes
  • DRIVE LINE
    add remove
    • Driveline Type
      4X2
    • Number Of Driveline Modes
      1
    • Rear Unlocking Differential
      No
    • Rear Solid Axle
      Yes
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      40.6
    • Height (in)
      39.6
    • Wheelbase (in)
      40.6
    • Ground Clearance (in)
      4.1
    • Fuel Capacity (gal)
      1.8
    • Engine Displacement to Weight (cc)
      0.36
    • Wet Weight (lbs)
      315
  • SUSPENSION
    add remove
    • Front Suspension Type
      A-Arm
    • Front Travel (in)
      5
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Swing Arm
    • Rear Travel (in)
      5.7
    • Rear Adjustable Shock / Spring Pre-Load
      No
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      1
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Steel
    • Tube / Tubeless
      Tubeless
    • Front Tire Diameter (in)
      19
    • Rear Tire Diameter (in)
      18
    • Front Tire (Full Spec)
      AT 19 X 7-8
    • Rear Tire (Full Spec)
      AT 18 X 9-8
    • Tire Chains
      Not Available
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Dual Sealed Drum
    • Rear Brake Type
      Sealed Drum
  • Color options
    add remove
    • Tactical Green / Acid Green
    • Armor Grey
