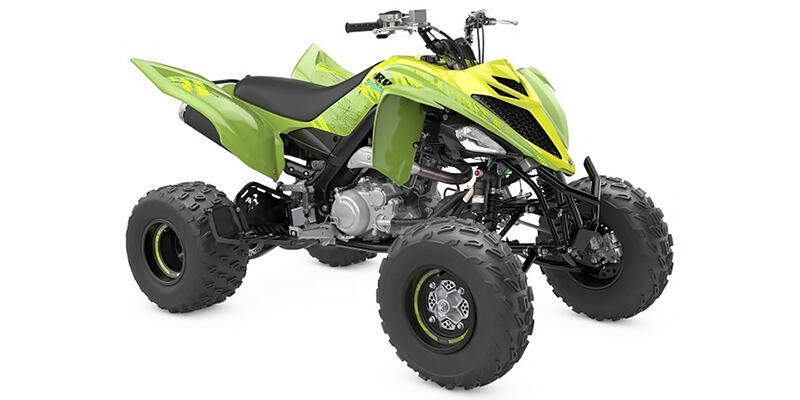

Raptor 700R SE

Raptor 700R SE

Description

Boasting unmatched performance, unique color and graphics, and special edition Yamaha Genuine accessories, this machine is Sport ATV royalty.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      SOHC
    • Bore (in)
      4.02
    • Stroke (in)
      3.31
    • Displacement (cc)
      686
    • Carburetion Type
      Fuel Injected
    • Parental Controls
      Not Available
    • Valves Per Cylinder
      4
    • Fuel Injector Size (mm)
      44
    • Compression Ratio
      10.0:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Hi / Low Range
      No
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      Yes
  • DRIVE LINE
    add remove
    • Driveline Type
      4X2
    • Number Of Driveline Modes
      1
    • Rear Unlocking Differential
      No
    • Rear Solid Axle
      Yes
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      45.5
    • Height (in)
      43.9
    • Wheelbase (in)
      50.4
    • Ground Clearance (in)
      9.5
    • Fuel Capacity (gal)
      2.9
    • Engine Displacement to Weight (cc)
      1.63
    • Wet Weight (lbs)
      422
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Travel (in)
      9.1
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Adjustable Rebound Damping
      Yes
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Swing Arm
    • Rear Travel (in)
      10.1
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      Yes
    • Number Rear Shock Absorbers
      1
    • Rear Suspension Material
      Aluminum
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Tube / Tubeless
      Tubeless
    • Front Tire Diameter (in)
      22
    • Rear Tire Diameter (in)
      20
    • Front Tire (Full Spec)
      Maxxis® AT 22 X 7-10
    • Rear Tire (Full Spec)
      Maxxis® AT 20 X 10-9
    • Tire Chains
      Not Available
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Hydraulic Disc
  • Color options
    add remove
    • Acid Green
    • 70th Anniversary - Red/Black/White
