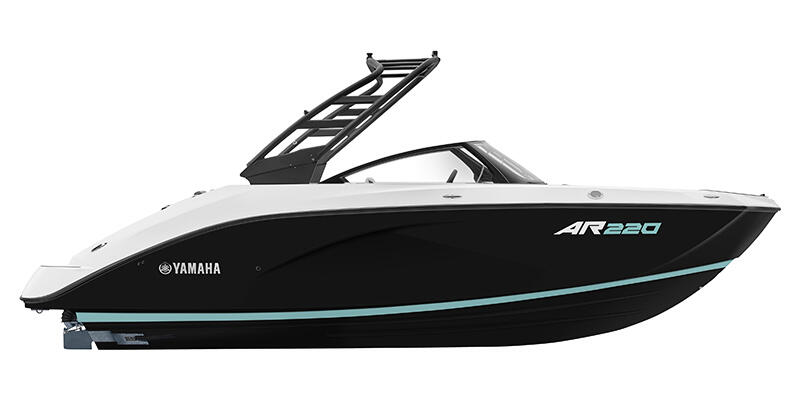

AR220

Specifications

• ENGINE

  add remove
  • Engine Manufacturer
    Yamaha
  • Engine Brand Name
    TR-1
  • Engine Trim
    Jet Drive
  • Engine Configuration
    Inboard
  • Engine Type
    In-Line
  • Number Of Engines
    1
  • Cylinders
    3
  • Engine Stroke
    4-Stroke
  • Cooling
    Water (Open Loop)
  • Valves
    12
  • Valves Per Cylinder
    4
  • Valve Configuration
    DOHC
  • Bore (in)
    3.23
  • Stroke (in)
    2.61
  • Displacement (cc)
    1049
  • Compression Ratio
    11.0:1
  • Starter
    Electric
  • Salt Water Capable
    Yes
  • Engine Alert System Type
    Audible
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Horsepower (bhp)
    100
• DRIVE LINE

  add remove
  • Propulsion Type
    Jet Drive
  • Twin Propeller
    No
  • Counter Rotating Capable
    Yes
  • Jet Pump Type
    Axial Flow
  • Jet Pump Diameter (in)
    5.7
  • Impeller Material
    Stainless Steel
  • Number Of Blades
    3
  • Trim System Type
    Power
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (ft)
    22
  • Beam (in)
    102
  • Bridge Clearance (in)
    91
  • Draft (Drive Up) (in)
    19
  • Draft (Drive Down) (in)
    19
  • Deadrise (deg)
    20
  • Dry Weight (lbs)
    3538
  • Weight Capacity (lbs)
    2200
  • Number of Passengers
    10
  • Fuel Capacity (gal)
    70
  • Number Of Fresh Water Holding Tanks
    0
  • Total Fresh Water Tank Capacity (gal)
    0
  • Total Gray Water Tank Capacity (gal)
    0
  • Total Black Water Tank Capacity (gal)
    0
  • Number Of Water Ballast Tanks
    0
  • Total Water Ballast Tank Capacity (gal)
    0
• Color options

  add remove
  • Black
  • Dolphin Gray
