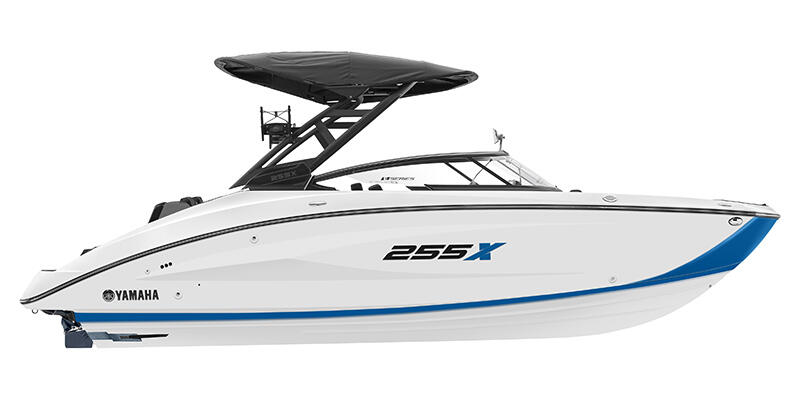

255XE

Description

Unleashed Power, Wake Technology, and Style

The 255XE, with a combined 500 horsepower, showcases advanced technology for exceptional wakesurf performance and combines it with sleek, stylish design.

Specifications

ENGINE

add remove
- Engine Manufacturer

  Yamaha
- Engine Brand Name

  1.8L Marine Engine
- Engine Trim

  1.8L-SVHO Jet Drive
- Engine Configuration

  Inboard
- Engine Type

  In-Line
- Number Of Engines

  2
- Cylinders

  4
- Engine Stroke

  4-Stroke
- Cooling

  Water (Open Loop)
- Valves

  16
- Valves Per Cylinder

  4
- Valve Configuration

  DOHC
- Bore (in)

  3.39
- Stroke (in)

  3.07
- Displacement (cc)

  1812
- Compression Ratio

  11.0:1
- Starter

  Electric
- Salt Water Capable

  Yes
- Fuel Injector

  Yes
- Carburetor

  No
- Carburetion Type

  Fuel Injected
- Horsepower (bhp)

  250
- Engine Model Code

  1.8L-SVHO
DRIVE LINE

add remove
- Propulsion Type

  Jet Drive
- Twin Propeller

  No
- Counter Rotating Capable

  Yes
- Jet Pump Type

  Axial Flow
- Jet Pump Diameter (in)

  6.3
- Impeller Material

  Stainless Steel
- Number Of Blades

  3
- Trim System Type

  Power
TECHNICAL SPECIFICATIONS

add remove
- Length (ft)

  24.5
- Beam (in)

  102
- Bridge Clearance (in)

  97
- Draft (Drive Up) (in)

  19
- Draft (Drive Down) (in)

  19
- Deadrise (deg)

  20
- Dry Weight (lbs)

  4506
- Weight Capacity (lbs)

  2350
- Number of Passengers

  12
- Fuel Capacity (gal)

  75
- Number Of Fresh Water Holding Tanks

  0
- Total Fresh Water Tank Capacity (gal)

  0
- Total Gray Water Tank Capacity (gal)

  0
- Total Black Water Tank Capacity (gal)

  0
- Number Of Water Ballast Tanks

  3
- Total Water Ballast Tank Capacity (gal)

  192
Color options

add remove
- White
